Devices

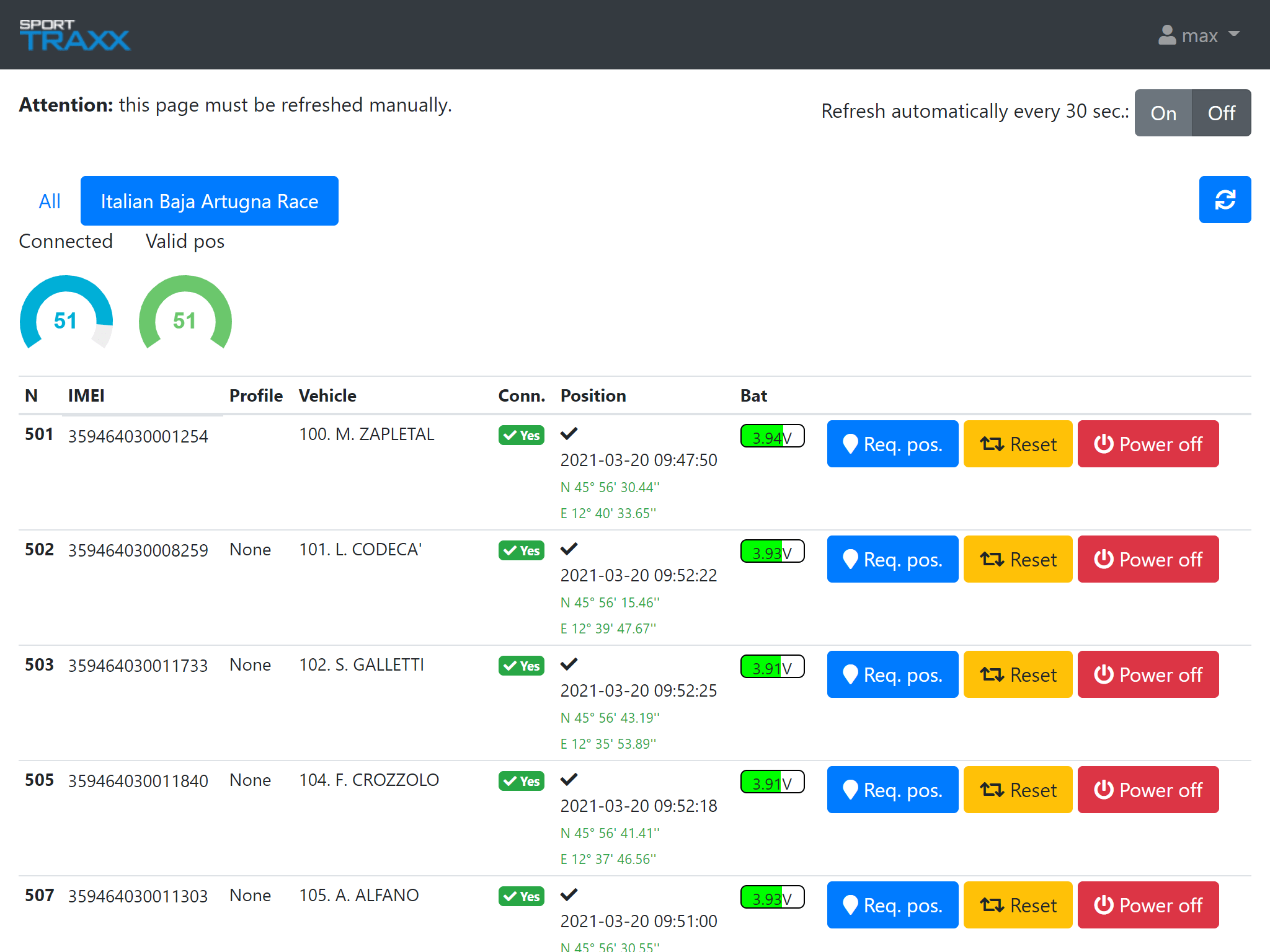

This page allows the monitoring of all trackers assigned to your event or to that event's vehicles. If the trackers are not allocated yet to racing numbers or service vehicles, they can be shown here, if associated to the event. It shows/counts the number of trackers which are actually connected and those with a valid GPS position. It allows to send commands to a specifi tracker.

Description

This page does not refresh automatically, therefore use the Refresh button or activate the 30 sec. auto refresh option.

Fields

The columns, whose content can be ordered by clicking on their names at the top, show:

• N: device ID
• IMEI: unique IMEI code
• Profile: special settings of that device (if any)
• Vehicle: number and name of competitor (if assigned)
• Conn.: connection status (Red = disconnected, Green = online)
• Position: last transmitted position and time/date of it
• Bat: level of internal battery and if connected to external power supply/charger (this info is updated each 5 minutes)

Functions

If the user is logged in, three buttons will allow the transmission of commands to the device:

• Req.Pos.: to update the position
• Reset: to restart the device (might take up to 1 minute)
• Power off: to turn off the tracker Note: if turned off, the tracker cannot be reached again from remote
