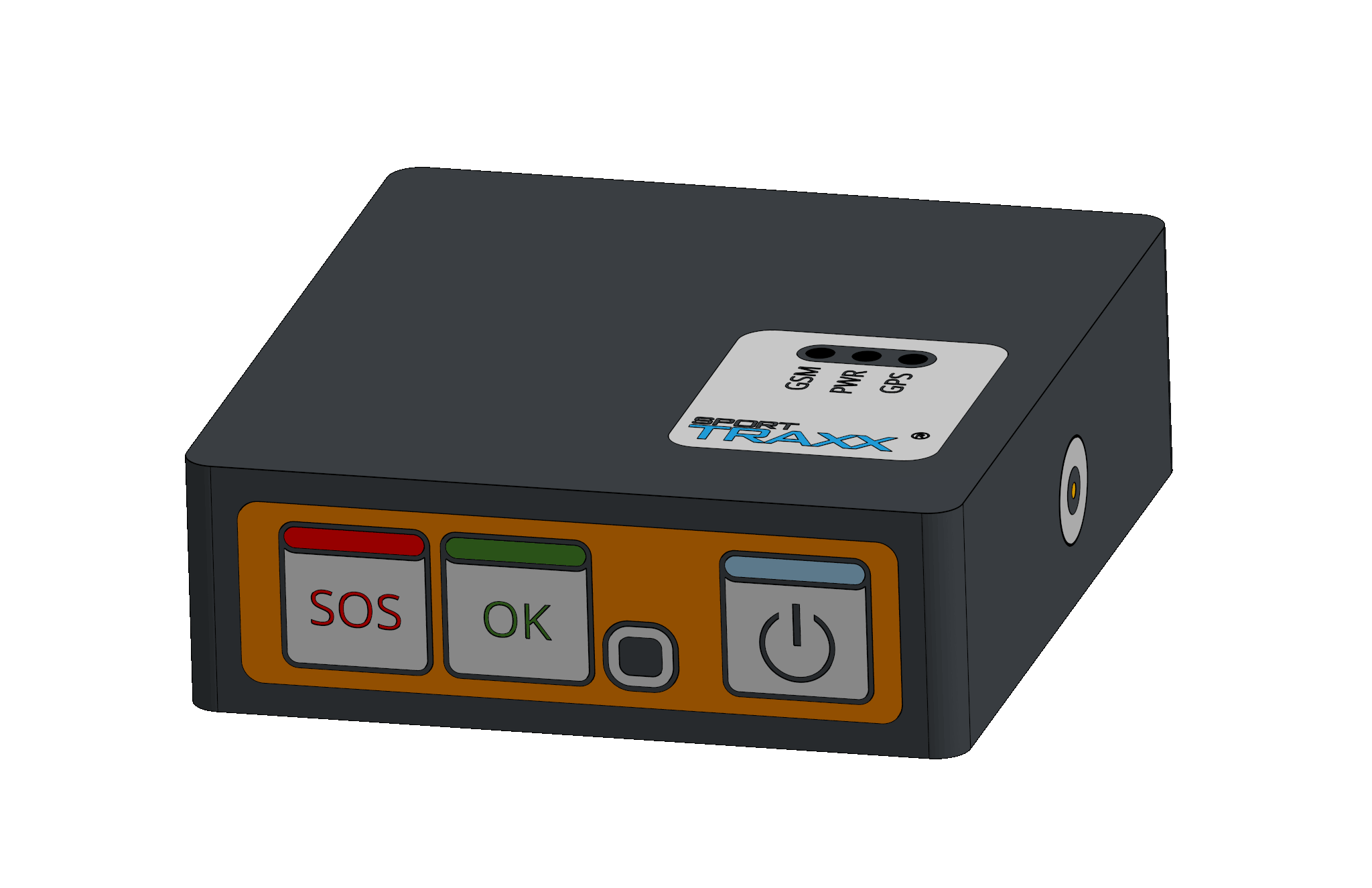

GL200 UK

Description

This tracker has been designed for the UK rallies. It is based on the GL200 module but has a 2600 mAh battery. Battery life can reach up to 24 hours of continuous use. In addition it has an SOS button, an OK button and a on/off button with additional hard reset functions.

It is installed on its craddle in the center of the car's dashboard. It can be locked by a rubber ring or a cable tie.

The holes on the bottom allow the use of the UK craddle.

ON/OFF

Short press to turn on. Long press to turn off. 10 seconds press performs a hard reset. After that you might need to restart the device. Reset only in case the tracker is GSM-stuck.

Charging

It can be charged using the magnetic multicable or the multi-slot chargers. Max. charging current is around 900 mAh. Full charging time is around 3 hours.

While charging, the GL200 is OFF and the red charging LED will be on. When battery is full the red LED will turn off.

Battery level can be also checked online but in that case the trackers must be switched on.
